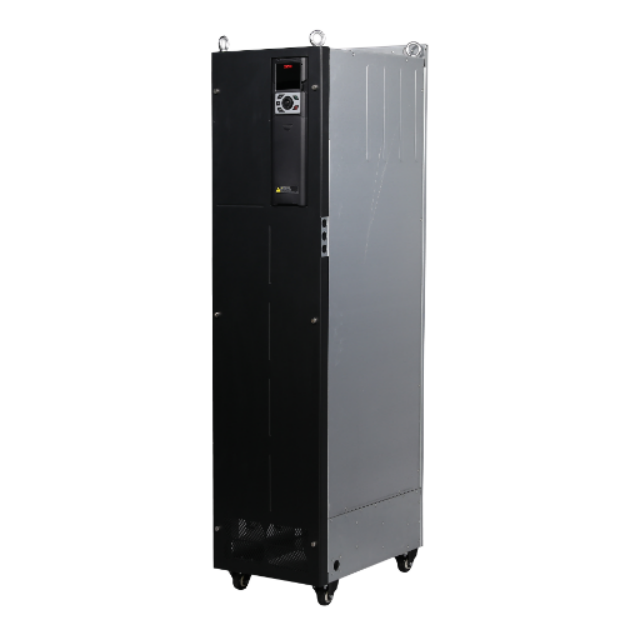

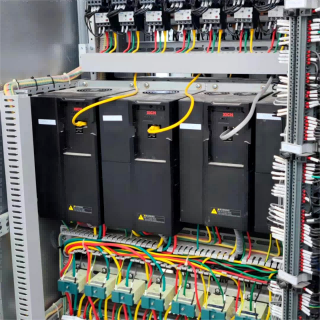

3phase 480V Industrial AC Drive for Pump and Fan application

XFC500 series industrial AC drives can realize precise control and adjustment of asynchronous motors, especially for fan and water pump load applications.
Input voltage:three-phase 380V~480V
Output voltage:consistent with the input voltage
Allowable voltage fluctuation:-15% ~ +10%
The adaptable motor power is from  7.5kW  to  450kW.

Availability:
  • XFC500-P (For Pump and Fan)
  • XiChi
  • 3phase 380V ~ 480V, 50/60Hz
  • Asynchronous motor
  • 7.5 ~ 450kW
  • Open vector control VFD. It is used to drive fans, water pumps, textile machines, machine tools and various automated production equipment.



Technical features of XFC500 VFD

  • 160kW - 450kW models with built-in DC reactor.

  • Support wall-mounted, embedded, side-by-side, top-bottom and other installation methods.

  • Flexible application function expansion, mainly including IO expansion card, PLC expansion card.

  • Rich communication expansion, CANopen, Profibus, EtherCAT and other communication expansion cards can be connected through the expansion interface.

  • LED operation keyboard can be connected externally.


Advantages ofXFC500 VFD

1. Superior motor drive and protection performance

• High-precision motor parameter self-learning function

• High-performance open-loop vector control

• Stable overvoltage, over-current stall control, reducing the number of failures

• Efficient instantaneous power failure protection function


2. High reliability design

• Electromechanical collaborative design to ensure the close cooperation between electronic components and structural parts;

• Accurate thermal simulation design ensures the best heat dissipation efficiency of the product;

• Excellent EMC(Electromagnetic Compatibility)design to reduce harmonic interference;

• More than 100 rigorous system tests to ensure the high performance and high quality of products;

• The temperature rise verification of the whole machine ensures the safe operation of the product.


3. Flexible application

• Multiple application function expansion enhances the applicability of the product;

• Rich communication expansion to meet the networking control requirements of different fieldbuses;

• High-performance LED keyboard, shuttle knob, clear display and easy operation;

• Support common DC bus and DC power supply;

• EMC safety capacitor grounding (optional);


XFC500 series VFD Type designation

Designation

(i.e. XFC500-3P4-7K50-P-BEN-20)

Description

XFC500

Xichi low-voltage ac drive series product code

3P4

Supply Power Specifications

3P4 = 3phase, 400V

7K50

Adapted motor power

7K50 = 7.5kW

450K = 450kW

P

For water pump and fan applications

B

Braking unit

B: Built-in braking unit

N: without braking unit

E

Operation panel

E: LED

C: LCD

N: without operation panel

N

Output reactor

L: with output reactor

N: without output reactor

2

IP degree of protection

2 = IP20

0

Design code

0: Standard machine

1-Z: Non-standard machine



Specifications

Item

Parameter


Power supply




Rated supply voltage

three phase 380V ~ 480V

Allowed voltage fluctuations

-15%~+10%

Rated supply frequency

50/60Hz

Allowed Frequency Fluctuations

±5%

Output




Max output voltage

Three-phase 380V~480V

Go after the input voltage

Max Output frequency

500Hz

Carrier Frequency

0.5 ~ 16kHz (automatic adjustment according to the temperature, and the adjustment range differs for different models )

Overload capacity

120% rated current 60s;

150% rated current 3s.

Basic Functions










Frequency setting resolution

Digital setting: 0.01Hz

Analog setting: max frequency × 0.025%

Control Mode

Open Loop Vector Control (SVC)

V/F Control

Pull-in torque

0.3Hz/150%(SVC)

Speed range

1 : 200(SVC)

Speed Stabilizing accuracy

±0.5%(SVC)

Torque boost

Automatic torque boost

Manual torque increase 0.1% ~ 30.0%

V/F Curve

Three ways:

linear type;

multi-point type;

N-th power V/F curve (n=1.2, 1.4, 1.6, 1.8, 2)

Acceleration and deceleration curve

Linear or S-curve acceleration and deceleration;

Four kinds of acceleration and deceleration time.

Adjustable range 0.0~6500.0S

DC braking

Frequency of DC braking: 0.00Hz ~ max frequency

Braking time: 0.0s ~ 36.0s

Braking action current value: 0.0% ~ 100.0%

Jogging control

Jogging frequency range:0.00Hz ~ 50.00Hz

Jog acceleration- deceleration time:0.0s ~ 6500.0s


Simple PLC, multi-stage speed operation

Up to 16-stage speed operation via built-in PLC or control terminal

Built-in PID

Implementing closed-loop control in process control applications

Overvoltage and overcurrent stall control

Automatically limit current and voltage during operation to prevent fault shutdown due to frequent over-current and over-voltage

Fast current limiting function

Reduce overcurrent fault shutdown to ensure the normal operation of the frequency converter

Control interface






Digital input

5 multi-function digital inputs.

One of which supports max 100kHz pulse input function

Analog input

2 analog inputs.

Both supporting 0 ~ 10V or 0 ~ 20mA analog input, switch voltage or current input via jumper

Digital output

2 open-collector digital outputs.

One of which supports max 100KHz square wave output

Analog output

1 analog output.

Supporting 0 ~ 10V or 0 ~ 20mA analog output, switch voltage or current output via jumper

Relay output

1-channel relay output, including 1 normally open contact, 1 normally closed contact

Standard communication interface

1 channel RS485 communication interface

Expansion interface

Function expansion interface

Connectable to IO expansion card, PLC programmable expansion card, etc.

Operation panel





LED digital display

5-digit display of parameters and settings

Indicator light

4 status indications, 3 unit indications

Button’s Function

5 function buttons including 1 multi-function button. The function can be set via parameter P0 - 00

Shuttle Knob

Add, minus and confirm

Parameter copy

Fast upload and download parameters

Protective function

Basic protection

Input and output phase loss, overvoltage, undervoltage, overheating, overload, overcurrent, short circuit, voltage and current limiting, fast current limiting and other protection functions

Environment








Operation condition

Indoor, no conductive dust and oil, etc.

Operating ambient temperature

-10°C ~ +40°C (40°C ~ 50°C, derate 1.5% for every 1°C increase in temperature

Humidity

Less than 95% RH, no condensation

Operating altitude

No derating below 1000m, derate by 1% for every 100m elevation above 1000m

(<=1000m without derating,

>1000m with current derating 1% per 100m)

Ambient temperature for Storage

-20℃ ~ +60℃

Vibration

Less than 5.9m/s&sup2; (0.6g)

Installation method

Mounting mode

Wall-mounted or flush-mounted installation in the cabinet

(Need to choose the appropriate installation accessories)

IP degree of protection

IP20



XFC500 VFD for 7.5~450kW/10~600hp motor

Model

XFC500-3P4-**** P

Motor power

Rated input capacity

kVA

Rated input current

A

Rated output current

A

7K50 P

7.5kW

10.1hp

14

21

17

11K0 P

11kW

14.8hp

20

30

25

15K0 P

15kW

20.1hp

27

41

33

18K5 P

18.5kW

24.8hp

33

50

40

22K0 P

22kW

29.5hp

38

57

45

30K0 P

30kW

40.2hp

51

77

61

37K0 P

37kW

49.6hp

62

94

74

45K0 P

45kW

60.3hp

75

114

90

55K0 P

55kW

73.8hp

91

138

109

75K0 P

75kW

100.6hp

123

187

147

90K0 P

90kW

120.7hp

147

223

176

110K P

110kW

147.5hp

179

271

211

132K P

132kW

177.0hp

167

253

253

160K P

160kW

214.6hp

201

306

303

185K P

185kW

248.1hp

233

353

350

200K P

200kW

268.2hp

250

380

378

220K P

220kW

295.0hp

275

418

416

250K P

250kW

335.3hp

312

474

467

280K P

280kW

375.5hp

350

531

522

315K P

315kW

422.4hp

393

597

588

355K P

355kW

476.1hp

441

669

659

400K P

400kW

536.4hp

489

743

732

450K P

450kW

603.5hp

550

835

822

Note: Please contact our sales staff for model selection of 500K and above.



Mounting and Clearance

Mounting Types: Single machine installation



XFC500-3P4-**** P

Mounting Clearance (mm)

7K50P ~ 18K5P

A1 ≥ 150

B1 ≥ 10

22K0P ~ 185KP

A1 ≥ 150

B1 ≥ 30



XFC500-3P4-**** P

Mounting Clearance (mm)

200KP ~ 450KP

A1 ≥ 150

B1 ≥ 10

B2 ≥ 20

C1 ≥ 20


Mounting Types: Side-by-side installation

XFC500-3P4-**** P

Mounting Clearance (mm)

7K50P ~ 18K5P

A1 ≥ 150

B1 ≥ 10

C1 ≥ 10

22K0P ~ 185KP

A1 ≥ 150

B1 ≥ 30

C1 ≥ 10


Mounting Types: Up and down vertical installation

XFC500-3P4-**** P

Mounting Clearance (mm)

7K50P ~ 18K5P

D1 ≥ 300

22K0P ~ 185KP

D1 ≥ 400



Dimensions Drawings

Model

W

H

D

w

h

h1

d

t

Fixing screws

Net Weight

XFC500-3P4-7K50P-BEN-20

140

268

185

100

259

240

180

1.5

M5

3.2kg/7.1lb

XFC500-3P4-11K0P-BEN-20

XFC500-3P4-15K0P-BEN-20

170

318

225

125

309

290

220

5kg/11lb

XFC500-3P4-18K5P-BEN-20

XFC500-3P4-22K0P-BEN-20

190

348

245

150

339

320

240

6kg/13.2lb

XFC500-3P4-30K0P-BEN-20

Model

W

H

D

w

h

h1

d

t

Fixing screws

Net Weight

XFC500-3P4-37K0P-BEN-20

260

500

260

200

478

450

255

1.5

M6

17kg/37.5lb

XFC500-3P4-45K0P-BEN-20

XFC500-3P4-55K0P-BEN-20

295

570

307

200

550

520

302

2

M8

22kg/48.5lb

XFC500-3P4-75K0P-BEN-20

XFC500-3P4-90K0P-BEN-20

350

661

350

250

634

611

345

2

M10

48kg/105.8lb

XFC500-3P4-110K0P-BEN-20

XFC500-3P4-132KP-BEN-20

XFC500-3P4-160KP-BEN-20

450

850

355

300

824

800

350

2

M10

91kg/200.7lb

XFC500-3P4-185KP-BEN-20

Model

W

H

D

w

h

h1

h2

d

W1

Fixing screws

Net Weight

XFC500-3P4-200KP-BEN-20

340

121

560

200

1150

1180

53

545

400

M12

210kg/463.1lb

XFC500-3P4-220KP-BEN-20

XFC500-3P4-250KP-BEN-20

XFC500-3P4-280KP-BEN-20

XFC500-3P4-315KP-BEN-20

XFC500-3P4-355KP-BEN-20

340

1445

560

200

1375

1410

56

545

400

245kg/540.2lb

XFC500-3P4-400KP-BEN-20

XFC500-3P4-450KP-BEN-20



XFC500 Declaration of Conformity

This frequency converter has been tested in accordance with IEC61800-5-1:2007 and confirmed to comply with the Low Voltage Directive.

This frequency converter complies with the Low Voltage Directive and the EMC Directive, and is CE marked.

This frequency converter has been tested in accordance with European standard EN61800-3:2004 to confirm compliance with the EMC Directive.

XFC500 series frequency converters comply with the European EMC directive and are suitable for the second environment.

Second environment: The second environment includes facilities other than those directly connected to the low-voltage grid supplying residential buildings.

This frequency converter has been tested according to 2011/65/EU Restriction of Hazardous Substance and confirmed to be RoHS compliant.

XFC500&550 VFD CE Certificate of Conformity LVD-XiChiElectric.pdf

XFC500&550 VFD CE Certificate of Conformity EMC-XiChiElectric.pdf

XFC500&550 VFD Attestation of Conformity RoHS-XiChiElectric.pdf
