Availability: | |
---|---|

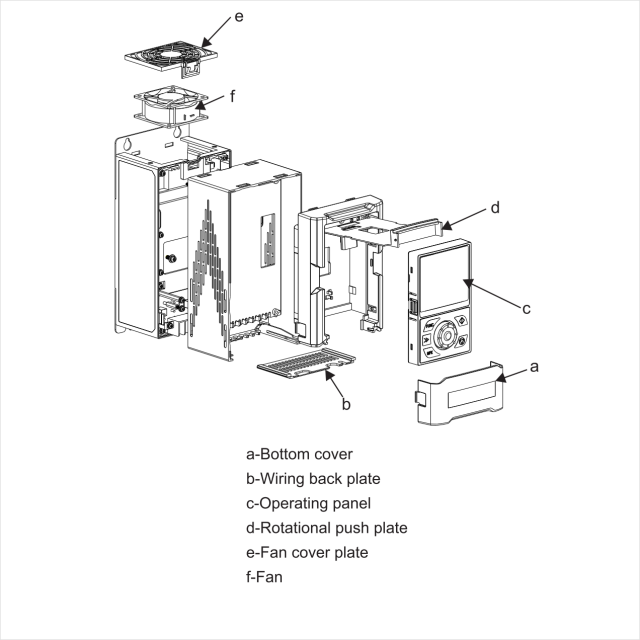

XFC550 is a high-performance vector control variable frequency drive, its features:
1. This model is suitable for general-purpose loads, fans, pumps and compressors, etc..
2. Has the performance of open-loop vector control, closed-loop vector control and V/f control;
3. Flexible application expansion functions, mainly including IO expansion card, encoder expansion card, PLC expansion card;
4. Rich communication expansion, CANopen, Profibus, EtherCAT and other communication expansion cards can be connected through the expansion interface;
5. 11K0 and above models have built-in DC reactor;
6. External LED operation panel can be introduced;
7. Support wall-mounted, embedded, side-by-side, top-bottom and other installation methods;
8. All series support common DC bus and DC power supply.
Four sets of motor control parameters:
Four sets of motor control parameters are provided as standard, which can correspond to four types of motors with different process requirements and power segments.
It is only necessary to set the relevant parameters of each group of motors in advance, and switch to use through the DI terminal, without additional adjustment of parameters. In this way, the problem of backup and replacement of variable frequency drives on the project site is well dealt with, and the reliability of the project is improved.
Flexible port configuration:
Customers can choose I/O expansion card according to their needs. According to different process requirements, flexible configuration of digital quantity and analog quantity provides convenience for project design and debugging.
Rich extension applications:
The XFC550 series variable frequency drive supports the application of two built-in expansion cards at the same time.
One channel of function and communication expansion, including IO expansion cards, PLC programmable expansion cards, and various communication expansion cards, etc.; one channel of encoder expansion cards, including encoder expansion cards compatible with differential and OC interfaces and resolver expansion cards, etc. Combined use to achieve a variety of complex system control functions.
High-performance stall control:
High-performance over-current stall and over-voltage stall control can better meet the load requirements of different mechanical characteristics, so that the mechanical characteristics of the motor can be hard or soft, and are widely used in various engineering equipment applications.
Item | Specification | |
Power supply | Rated voltage | 3 phase 380V~480V |
Allowed Voltage Fluctuations | -15%~+10% | |
Rated frequency | 50/60Hz | |
Allowed Frequency Fluctuations | ±5% | |
Output | Max output voltage | Three-phase 380V~480V (Go after the input voltage) |
Max Output frequency | 500Hz | |
Carrier Frequency | 0.5~16kHz (automatic adjustment according to the temperature, and the adjustment range differs for different models ) | |
Overload capacity | 150% rated current 60s; 180% rated current 3s | |
Basic Functions | Frequency setting resolution | Digital setting: 0.01HZ Analog setting: max frequency × 0.025% |
Control Mode | Open Loop Vector Control Closed Loop Vector Control V/f Control | |
pull-in torque | 0.3HZ/150% (SVC) 0 Hz/180% (FOC) | |
Speed range | 1:200 (SVC) 1:1000 (FOC) | |
Speed Stabilizing accuracy | ±0.5% (SVC) ±0.02% (FOC) | |
Torque Control Precision | ±5% (FOC) | |
Torque boost | Automatic torque boost; Manual torque increase 0.1%~30.0% | |
V/F Curve | Three ways: linear type; multi-point type; N-th power V/F curve (1.2 power, 1.4 power, 1.6 power, 1.8 power, 2 power) N次方 | |
Acceleration and deceleration curve | Linear or S-curve acceleration and deceleration; Four kinds of acceleration and deceleration time, the range of acceleration and deceleration time is 0.0~6500.0S | |
DC braking | Frequency of DC braking: 0.00HZ ~ max frequency Braking time: 0.0S~36.0s Braking action current value: 0.0%~100.0% | |
Jogging control | Jogging frequency range:0.00HZ~50.00HZ Jog acceleration- deceleration time:0.0s~6500.0s | |
Simple PLC, multi-stage speed operation | Up to 16-stage speed operation via built-in PLC or control terminal | |
Built-in PID | closed-loop control realized in process control applications | |
Overvoltage and overcurrent stall control | Automatically limit current and voltage during operation to prevent fault shutdown due to frequent over-current and over-voltage | |
Fast current limiting function | Minimize shutdown due to overcurrent to ensure normal operation of the variable frequency drive. | |
Control interface | Digital input | 5 multi-function digital inputs, one of which supports max 100kHZ pulse input function |
Analog input | 2 analog inputs, both supporting 0~10V or 0~20mA analog input, switch voltage or current input via jumper | |
Digital output | 2 open-collector digital outputs, one of which supports max 100kHZ square wave output | |
Analog output | 1 analog output, supporting 0~10V or 0~20mA analog output, switch voltage or current output via jumper | |
Relay output | 1-way relay output, including 1 normally open contact, 1 normally closed contact | |
Standard communication interface | 1 channel RS485 communication interface | |
Expansion interface | Function expansion interface | Connectable to IO expansion card, PLC programmable expansion card, etc. |
Encoder control interface | Can be connected to compatible differential and OC encoder expansion cards, etc. | |

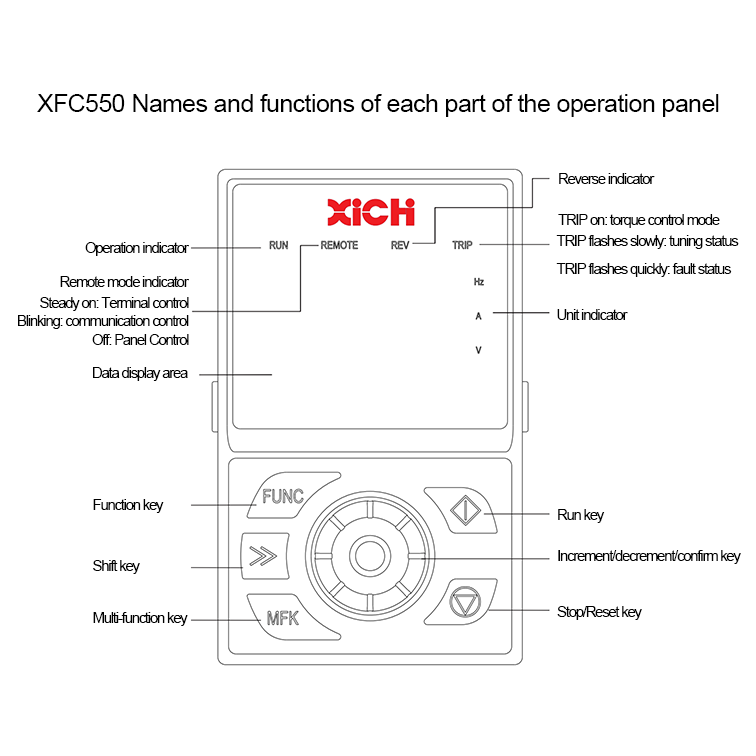

Operation panel | LED digital display | 5-digital display of parameters and settings |
Indicator light | 4 status indications, 3 unit indications | |
Button Function | 5 function buttons including 1 multi-function button. The function can be set via parameter P0-00 | |
Shuttle Knob function | Add, minus and confirm | |
Parameter copy | Fast upload and download parameters | |
Protective function | Basic protection | Phase loss, overvoltage, undervoltage, overcurrent, overload, overheat, interphase short circuit, grounding fault |
Environment | Operation condition | Indoor, no conductive dust, oil pollution, etc. |
Operating ambient temperature | -10°C ~ +40°C (40°C~50°C, derate 1.5% for every 1°C increase in temperature) | |
Humidity | Less than 95%RH, no condensation | |
Altitude | No derating below 1000m, derate by 1% for every 100m elevation above 1000m | |
Ambient temperature for Storage | -20℃~+60℃ | |
Vibration | Less than5.9m/s²(0.6g) | |
Installation method | Wall-mounted or flush-mounted installation in the cabinet (requires optional installation accessories) | |
IP grade | IP20 |

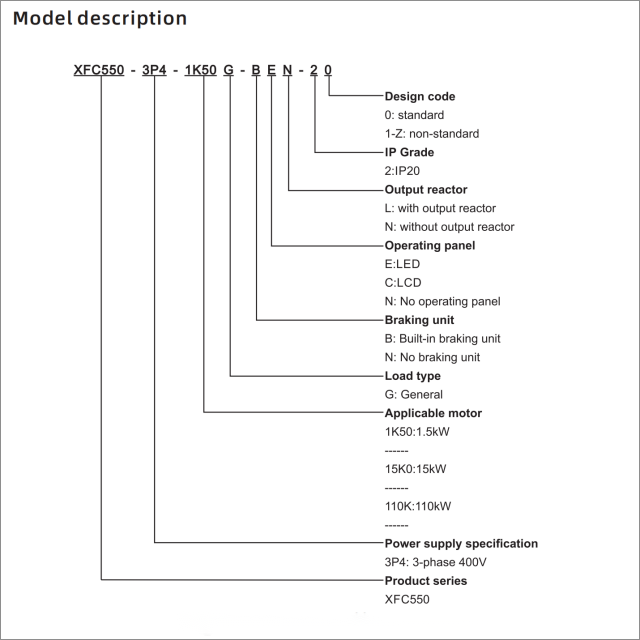

Model XFC550-3p4-xxxxG | Adapted Motor Power kW | Rated Input Capacity kVA | Rated Input Current A | Rated Output Current A |
1k50 | 1.5 | 3.2 | 4.8 | 4 |
2k20 | 2.2 | 4.5 | 6.8 | 5.6 |
4k00 | 4 | 7.9 | 12 | 9.7 |
5k50 | 5.5 | 11 | 16 | 13 |
7k50 | 7.5 | 14 | 21 | 17 |
11k0 | 11 | 16 | 24 | 25 |
15k0 | 15 | 21 | 32 | 33 |
18k5 | 18.5 | 26 | 39 | 40 |
22k0 | 22 | 29 | 44 | 45 |
30k0 | 30 | 39 | 60 | 61 |
37k0 | 37 | 48 | 73 | 74 |
45k0 | 45 | 58 | 88 | 90 |
55k0 | 55 | 71 | 107 | 109 |
75k0 | 75 | 96 | 145 | 147 |
90k0 | 90 | 114 | 174 | 176 |
110k | 110 | 139 | 211 | 211 |
132k | 132 | 167 | 253 | 253 |
160k | 160 | 201 | 306 | 303 |
185k | 185 | 233 | 353 | 350 |
200k | 200 | 250 | 380 | 378 |
220k | 220 | 275 | 418 | 416 |
250k | 250 | 312 | 474 | 467 |
280k | 280 | 350 | 531 | 522 |
315k | 315 | 393 | 597 | 588 |
355k | 355 | 441 | 669 | 659 |
400k | 400 | 489 | 743 | 732 |
450k | 450 | 550 | 835 | 822 |
