XiCHi
Item | Compensation capacity Kvar | 25 | 30 | 50 | 75 | 100 | 200 | 300 | 400 | 500 |
AC input | Rated voltage | 400W (±20%) | 690V (±20%) | |||||||
working frequency | （50±2) Hz | |||||||||
Wiring method | Three-phase four-wire system | |||||||||
Technical Parameter | The efficiency of the whole machine | is ≥97%, and the excess capacity is compensated according to the maximum capacity | ||||||||
Power consumption | ≤3% of rated capacity | |||||||||
Module expansion capability | Up to 10 function modules | |||||||||
Switching frequency | 20kHz | |||||||||
Circuit topology | Three-level | |||||||||
Harmonic Compensation Order | 2~25th harmonic, can be directly set to selectively eliminate a variety of specific harmonics, the capacity of harmonic compensation is not less than 50% of the total capacity (enhanced SVG) Ordinary SVG without filter function | |||||||||
Filter level setting | Enhanced SVG: Each harmonic can be individually set, and the ability to selectively eliminate specific harmonics; Ordinary SVG: without filtering. | |||||||||
Compensation range | Compensation range | Inductive reactive power, capacitive reactive power can be continuously compensated | ||||||||
The maximum inrush current | Not more than rated current | |||||||||
Response time | 100μs/10ms | |||||||||
Protection function | Grid overvoltage, undervoltage, overcurrent, bus overvoltage, overheating and current limiting protection, etc., with a delay of 5μs | |||||||||
Display function | 1. Various voltage and current value, current and voltage waveform display 2. The total load current value, SVG output total current value display 3. Running mode setting, fault information and running time query | |||||||||
Communication Interface | WIFI，RS232， RS485 | |||||||||
Performance | Noise | ＜65dB | ||||||||
Target power factor | －0. 99~0. 99 adjustable | |||||||||
Cooling method | Forced air cooling | |||||||||
Ambient temperature | －10℃~+45℃ | |||||||||
Storage temperature | －20℃~+60℃ | |||||||||
Humidity Maximum | Max 95%RH(non-condensing) | |||||||||
Altitude | Altitude ≤2000m, according to GB/T3859.2, the capacity decreases by 1% for every 100M increase | |||||||||
Protection grade | IP20 (other protection grades can be customized) | |||||||||

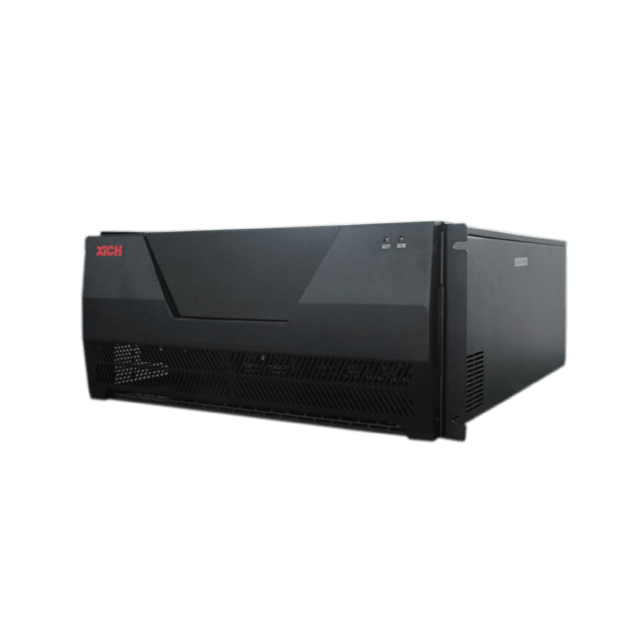

Mechanical characteristic | Size | 620mm*440mm*221mm(module) 800mm*800mm*2200mm(cabinet) other dimensions can be customized | ||||||||
Color | Acrylic black, other colors can be customized on request | |||||||||
Incoming line | bottom incoming line / top incoming line | |||||||||
Operating characteristics | It can operate safely and stably around the clock, without affecting the normal operation of other equipment in the system, and without endangering the security of the power grid. There are protection measures such as over-humidity, over-voltage, under-voltage, overload and over-current, short circuit and system self-diagnosis function inside the module. If a fault such as a short circuit occurs inside the module, it can be automatically protected without affecting the external power supply system. The compensation energy required by the load is greater than the rated compensation energy, which can be output according to the capacity of the body and continue to compensate, without overloading or causing equipment damage and exiting operation | |||||||||
