Motor Soft Starter for 3 Phase AC380V 7.5-630kW Asynchronous Motors

✔  Reduce motor starting current;
✔  Reduce motor starting stress and prolong equipment life;
✔  Smooth start and stop to eliminate surge and water hammer
✔  Various starting modes, current and voltage self-setting, for different loads;
✔  Perfect protection function to ensure the safety of motor and equipment.
Availability:
  • CMC-HX_Smart Type
  • 3phase AC 380V±15% (Standard&Internal delta wiring)
  • Ordinary squirrel cage AC asynchronous motor
  • 7.5 ~ 630kW
  • Universal model, widely suitable for various mechanical loads. Typically used for fans, pumps, compressors, etc.

CMC-HX Soft Starter Technical Characteristics

1. Closed-loop thyristor control function, designed for standard loads and heavy loads.

2. Ten types of loads built into the product parameters for user selection.

(centrifugal pump, hydraulic pump, axial fan, centrifugal fan, belt machine, compressor, crusher, mixer, ball mill, thruster)

3. Modbus RTU communication is standard. Optional Ethernet / GPRS communication module, convenient for users to connect to the network control, improve the level of automation and reliability of the system

4. Power frequency 50/60Hz self-adaptive function, convenient for users to use.

5. Strong anti-interference. All external control signals are isolated by photoelectricity, and set up different anti-noise levels to adapt to use in industrial environments.

6. With two sets of basic parameters, it can control two different power motors respectively.

7. The operation panel can be led out through the body interface to realize remote operation.

8. 10 times fault can be recorded. Easy to find the cause of failure.

9. The whole process of detecting current and load parameters, with microcomputer protection functions such as overcurrent, overload, underload, overheat, phase break, short circuit, three-phase current unbalance, phase sequence detection, frequency error, etc.

10. All refractory materials. Flame-retardant ABS and zinc-plated material processing, heat-resistant, corrosion-resistant.

11. 4 ~ 20mA or 0 ~ 20mA standard analog signal output function

12. LCD display panel


Product parameters

Control power

AC110V to AC220V+15%, 50/60Hz

Three-phase power

Standard wiring AC380V ±15%

Internal delta wiring AC380V±15%

Nominal current

18A~1200A, 22 rated values in total

Applicable motor

Ordinary squirrel cage AC asynchronous motor

Start mode

Voltage exponential curve;

Voltage linear curve;

Current exponential curve;

Current linear curve.

Stop mode

Free stop, Soft stop, Pump stop, Brake

Logical input

Impedance 1.8 KΩ, power supply +24V

Start frequency

Frequent or infrequent startup can be done, it is recommended that the number of startups per hour does not exceed 10 times

Protective function

Overcurrent, overload, underload, overheat, phase failure, three-phase current imbalance, phase sequence detection, overheat of motor and frequency error, etc.

Protection Level

IP00, IP20

Cooling type

Natural cooling or forced air cooling

Installation type

Wall mounted-vertical installation

Installation Environment

When sea altitude is above 2,000m, soft starter should be derated for use.

Ambient temperature: -25 ~ +45°C

Relative humidity: less than 95% (20°C±5°C)

Free of flammable, explosive and corrosive gas or conductive dust.

Indoor installation, good ventilation, vibration less than 0.5G

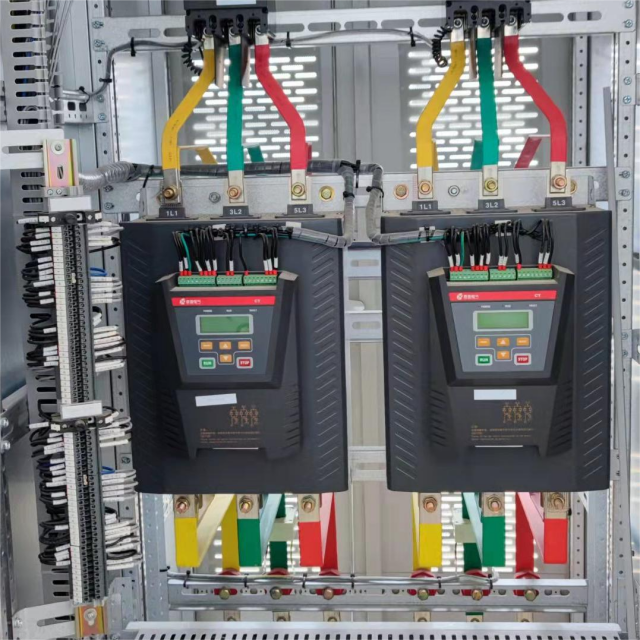

Soft Starter Wiring Instructions

Connectors

Wiring instructions

1L1, 3L2, 5L3

Connect three-phase AC power, bypass contactor

2T1, 4T2, 6T3

Connecting a 3-phase asynchronous motor

B1, B2, B3

Connecting the bypass contactor


CMC-HX Model Specification

Adapted motor power

(KW)

Model of soft starter

Rated current (A)

Dimensions

Gross weight(kg)

7.5

CMC-008/3-HX

18

172*320*172

4.5

11

CMC-011/3-HX

24

15

CMC-015/3-HX

30

18.5

CMC-018/3-HX

39

22

CMC-022/3-HX

45

30

CMC-030/3-HX

60

4.7

37

CMC-037/3-HX

76

45

CMC-045/3-HX

90

55

CMC-055/3-HX

110

5.1

75

CMC-075/3-HX

150

90

CMC-090/3-HX

180

285*474*235

20.6

110

CMC-110/3-HX

218

132

CMC-132/3-HX

260

160

CMC-160/3-HX

320

185

CMC-185/3-HX

370

220

CMC-220/3-HX

440

320*512*235

25.6

250

CMC-250/3-HX

500

280

CMC-280/3-HX

560

315

CMC-315/3-HX

630

400

CMC-400/3-HX

780

400*647*235

37.6

470

CMC-470/3-HX

920

530

CMC-530/3-HX

1000


How to order

  • To place an order, please provide product model, specification, load and application condition to your supplier;

Special note: If client needs keyboard box to be externally placed, it is necessary to order the mounting accessoriess from manufacturer. When keyboard box is externally placed, it needs to lock the mounting fittings of external keyboard box onto door panel with its hole size of 115.5(H) * 104.2(W). For specific installation steps, please refer to our reference guide.


  • As the standard configuration of soft starter contains built-in current transformer, user does not need to externally connect the both.
