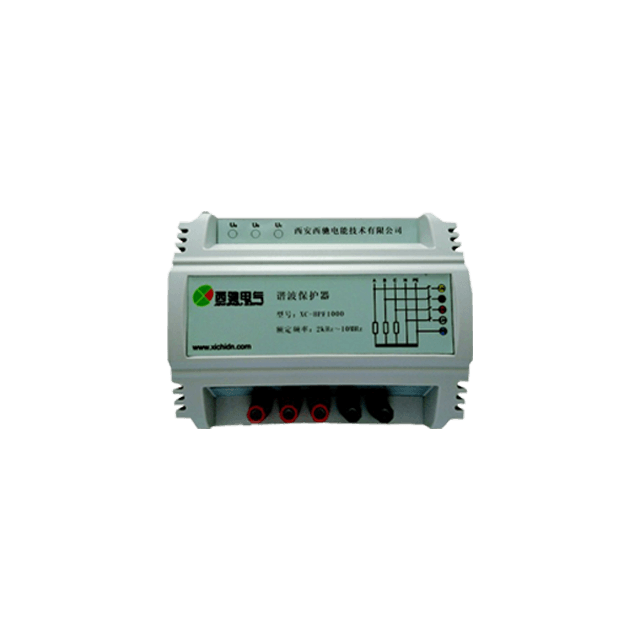

XC-HPF
XiCHi
Wide application frequency band It can absorb various high-order harmonics and high-order noises from 2kHZ to 10MHZ.
Small size, easy to install. Support wall-mounted and rail installation, simple wiring.
High reliability It has the characteristics of high efficiency, fast response and no noise, and can control the harmonics at the source very effectively.
Wide application. Suitable for various precision inductive loads.
Economic Benefits. The power consumption of the device itself is low, the failure rate of electrical equipment is reduced in an all-round way, and it has high economic benefits.
Wide application frequency band It can absorb various high-order harmonics and high-order noises from 2kHZ to 10MHZ.
Small size, easy to install. Support wall-mounted and rail installation, simple wiring.
High reliability It has the characteristics of high efficiency, fast response and no noise, and can control the harmonics at the source very effectively.
Wide application. Suitable for various precision inductive loads.
Economic Benefits. The power consumption of the device itself is low, the failure rate of electrical equipment is reduced in an all-round way, and it has high economic benefits.
Basic parameters | Wiring method | Single-phase, three-phase |
Power terminals | L, N, PE (single-phase); A, B, C, N, PE (three-phase) | |
External switch/A | 10/16, 2P (single-phase); 10/16, 3P (three-phase) | |
Installation method | Wall mounting: 35mm rail installation | |
Installation size(WDH) | 114mm*67mm*170mm wall mouning; 136mm*70mm*160mm rail installation | |
Voltage Level | 220V (single-phase); 380V (three-phase) | |
Function | Absorb the harmonic interference of various energies of 2kHz~10MHz frequency, and automatically eliminate random high-order harmonics and high-frequency noise generated by electrical equipment | |
Performance | Rated voltage | AC220±30% (single phase); AC 380±30% (three phase) |
Output power | 50/60±15% | |
Max pulse current | 12000A | |
Clamping voltage | For surge voltage of 2500V(1.2μs~50μs); can be limited to less than 1000V
| |
Anti-surge current | For the surge voltage of 2500V (1. 2μs~50μs), the surge current does not exceed 1000A (20μs~80μs) | |
Parameter indicator
| Circuit connection method | Single-phase grounding (single-phase); delta, star (three-phase) |
Insulation resistance | 1000MΩ | |
Withstand voltage | AC2000V,1min,No breakdown flashover | |
Contact capacity | 100A | |
Filtering performance | Harmonic absorption frequency range | 2kHz~10MHz |
Leakage current | 1mA | |
Environment | Temperature range | -25℃~+50℃ |
Storage temperature | -30℃~+70℃ | |
Relative humidity | 95% | |
Atmospheric pressure | 52-108kpa | |
Working environment | No corrosion, explosion and conductive dust, no serious mold, no violent shaking, no shock source | |
Installation | Installation method | 35mm standard rail |
Electromagnetic compatibility | Shock wave immunity | IE60255-22-1 Class III |
Electrostatic discharge immunity | IE60255-22-2 Class III | |
Radiated Immunity to Radio Frequency Electromagnetic Fields | IE60255-22-3 Class III | |
Electrical fast transient burst immunity | IE60255-22-4 Class III | |
Power | consumption | <1W |
Fever temperature | rise <5℃ |
