XFC500-G (General-purpose)
XiChi
3phase 380V ~ 480V, 50/60Hz
Asynchronous motor
1.5 ~ 450kW
General-purpose vector control VFD. It is used to drive fans, water pumps, textile machines, machine tools and various automated production equipment.
XFC500 series Variable Frequency Drive (VFD) uses high-performance DSP (Digital Signal Processors) as the control core and applies excellent performance speed sensorless vector control algorithm to achieve accurate control and regulation of asynchronous motors. The flexible and diverse expansion functions and high reliability design meet the requirements of a variety of applications and environments.
1. Superior motor drive and protection performance
• High-precision motor parameter self-learning function
• High-performance open-loop vector control
• Stable overvoltage, over-current stall control, reducing the number of failures
• Efficient instantaneous power failure protection function
2. High reliability design
• Electromechanical collaborative design to ensure the close cooperation between electronic components and structural parts;
• Accurate thermal simulation design ensures the best heat dissipation efficiency of the product;
• Excellent EMC(Electromagnetic Compatibility)design to reduce harmonic interference;
• More than 100 rigorous system tests to ensure the high performance and high quality of products;
• The temperature rise verification of the whole machine ensures the safe operation of the product.
3. Flexible application
• Multiple application function expansion enhances the applicability of the product;
• Rich communication expansion to meet the networking control requirements of different fieldbuses;

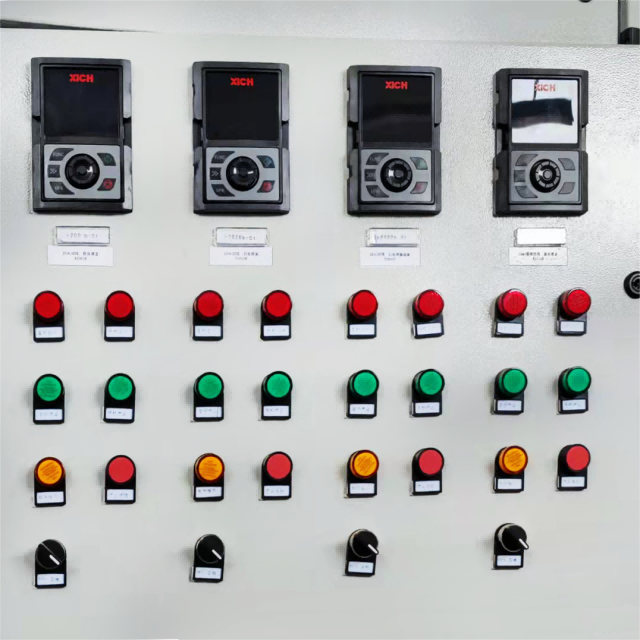

• High-performance LED keyboard, shuttle knob, clear display and easy operation;
• Support common DC bus and DC power supply;
• EMC safety capacitor grounding (optional);
• Various installation methods - please refer to the product installation diagram for details.
Designation (i.e. XFC500-3P4-5K50-G-BEN-20) | Description |
XFC500 | Xichi low-voltage frequency converter series product code |
3P4 | Power Specifications 3P4 = 3phase, 400V |
5K50 | Adapted motor power 5K50 = 5.5kW 450K = 450kW |
G | General-purpose model |
B | Braking unit B: Built-in braking unit N: without braking unit |
E | Operation panel E: LED C: LCD N: without operation panel |
N | Output reactor L: with output reactor N: without output reactor |
2 | IP degree of protection 2 = IP20 |
0 | Design code 0: Standard machine 1-Z: Non-standard machine |
Item | Parameter | |
Power supply | Rated supply voltage | three phase 380V ~ 480V |
Allowed voltage fluctuations | -15%~+10% | |
Rated supply frequency | 50/60Hz | |
Allowed Frequency Fluctuations | ±5% | |
Output | Max output voltage | Three-phase 380V~480V Go after the input voltage |
Max Output frequency | 500Hz | |
Carrier Frequency | 0.5 ~ 16kHz (automatic adjustment according to the temperature, and the adjustment range differs for different models ) | |
Overload capacity | 150% rated current 60s; 180% rated current 3s. | |
Basic Functions | Frequency setting resolution | Digital setting: 0.01Hz Analog setting: max frequency × 0.025% |
Control Mode | Open Loop Vector Control (SVC) V/F Control | |
Pull-in torque | 0.3Hz/150%(SVC) | |
Speed range | 1 : 200(SVC) | |
Speed Stabilizing accuracy | ±0.5%(SVC) | |
Torque boost | Automatic torque boost Manual torque increase 0.1% ~ 30.0% | |
V/F Curve | Three ways: linear type; multi-point type; N-th power V/F curve (n=1.2, 1.4, 1.6, 1.8, 2) | |
Acceleration and deceleration curve | Linear or S-curve acceleration and deceleration; Four kinds of acceleration and deceleration time. Adjustable range 0.0~6500.0S | |
DC braking | Frequency of DC braking: 0.00Hz ~ max frequency Braking time: 0.0s ~ 36.0s Braking action current value: 0.0% ~ 100.0% | |
Jogging control | Jogging frequency range:0.00Hz ~ 50.00Hz Jog acceleration- deceleration time:0.0s ~ 6500.0s | |
Simple PLC, multi-stage speed operation | Up to 16-stage speed operation via built-in PLC or control terminal | |
Built-in PID | Implementing closed-loop control in process control applications | |
Overvoltage and overcurrent stall control | Automatically limit current and voltage during operation to prevent fault shutdown due to frequent over-current and over-voltage | |
Fast current limiting function | Reduce overcurrent fault shutdown to ensure the normal operation of the frequency converter | |
Control interface | Digital input | 5 multi-function digital inputs. One of which supports max 100kHz pulse input function |
Analog input | 2 analog inputs. Both supporting 0 ~ 10V or 0 ~ 20mA analog input, switch voltage or current input via jumper | |
Digital output | 2 open-collector digital outputs. One of which supports max 100KHz square wave output | |
Analog output | 1 analog output. Supporting 0 ~ 10V or 0 ~ 20mA analog output, switch voltage or current output via jumper | |
Relay output | 1-channel relay output, including 1 normally open contact, 1 normally closed contact | |
Standard communication interface | 1 channel RS485 communication interface | |
Expansion interface | Function expansion interface | Connectable to IO expansion card, PLC programmable expansion card, etc. |
Operation panel | LED digital display | 5-digit display of parameters and settings |
Indicator light | 4 status indications, 3 unit indications | |
Button’s Function | 5 function buttons including 1 multi-function button. The function can be set via parameter P0 - 00 | |
Shuttle Knob | Add, minus and confirm | |
Parameter copy | Fast upload and download parameters | |
Protective function | Basic protection | Input and output phase loss, overvoltage, undervoltage, overheating, overload, overcurrent, short circuit, voltage and current limiting, fast current limiting and other protection functions |
Environment | Operation condition | Indoor, no conductive dust and oil, etc. |
Operating ambient temperature | -10°C ~ +40°C (40°C ~ 50°C, derate 1.5% for every 1°C increase in temperature | |
Humidity | Less than 95% RH, no condensation | |
Operating altitude | No derating below 1000m, derate by 1% for every 100m elevation above 1000m (<=1000m without derating, >1000m with current derating 1% per 100m) | |
Ambient temperature for Storage | -20℃ ~ +60℃ | |
Vibration | Less than 5.9m/s² (0.6g) | |
Installation method Mounting mode | Wall-mounted or flush-mounted installation in the cabinet (Need to choose the appropriate installation accessories) | |
IP degree of protection | IP20 |
Model XFC500-3P4-**** G | Motor power | Rated input capacity kVA | Rated input current A | Rated output current A | |
1K50 G | 1.5kW | 2.0hp | 3.2 | 4.8 | 4 |
2K20 G | 2.2kW | 3.0hp | 4.5 | 6.8 | 5.6 |
4K00 G | 4kW | 5.4hp | 7.9 | 12 | 9.7 |
5K50 G | 5.5kW | 7.4hp | 11 | 16 | 13 |
7K50 G | 7.5kW | 10.1hp | 14 | 21 | 17 |
11K0 G | 11kW | 14.8hp | 20 | 30 | 25 |
15K0 G | 15kW | 20.1hp | 27 | 41 | 33 |
18K5 G | 18.5kW | 24.8hp | 33 | 50 | 40 |
22K0 G | 22kW | 29.5hp | 38 | 57 | 45 |
30K0 G | 30kW | 40.2hp | 51 | 77 | 61 |
37K0 G | 37kW | 49.6hp | 62 | 94 | 74 |
45K0 G | 45kW | 60.3hp | 75 | 114 | 90 |
55K0 G | 55kW | 73.8hp | 91 | 138 | 109 |
75K0 G | 75kW | 100.6hp | 123 | 187 | 147 |
90K0 G | 90kW | 120.7hp | 147 | 223 | 176 |
110K G | 110kW | 147.5hp | 179 | 271 | 211 |
132K G | 132kW | 177.0hp | 167 | 253 | 253 |
160K G | 160kW | 214.6hp | 201 | 306 | 303 |
185K G | 185kW | 248.1hp | 233 | 353 | 350 |
200K G | 200kW | 268.2hp | 250 | 380 | 378 |
220K G | 220kW | 295.0hp | 275 | 418 | 416 |
250K G | 250kW | 335.3hp | 312 | 474 | 467 |
280K G | 280kW | 375.5hp | 350 | 531 | 522 |
315K G | 315kW | 422.4hp | 393 | 597 | 588 |
355K G | 355kW | 476.1hp | 441 | 669 | 659 |
400K G | 400kW | 536.4hp | 489 | 743 | 732 |
450K G | 450kW | 603.5hp | 550 | 835 | 822 |
Note: Please contact our sales staff for model selection of 500K and above.
Mounting Types: Single machine installation
XFC500-3P4-**** G | Mounting Clearance (mm) | |
1K50G ~ 15K0G | A1 ≥ 150 | B1 ≥ 10 |
18K5G ~ 160KG | A1 ≥ 150 | B1 ≥ 30 |
XFC500-3P4-**** G | Mounting Clearance (mm) | |||
185KG ~ 450KG | A1 ≥ 150 | B1 ≥ 10 | B2 ≥ 20 | C1 ≥ 20 |
Mounting Types: Side-by-side installation
XFC500-3P4-**** G | Mounting Clearance (mm) | ||
1K50G ~ 15K0G | A1 ≥ 150 | B1 ≥ 10 | C1 ≥ 10 |
18K5G ~ 160KG | A1 ≥ 150 | B1 ≥ 30 | C1 ≥ 10 |
Mounting Types: Up and down vertical installation
XFC500-3P4-**** G | Mounting Clearance (mm) |
1K50G ~ 15K0G | D1 ≥ 300 |
18K5G ~ 160KG | D1 ≥ 400 |
Model | W | H | D | w | h | h1 | d | t | Fixing screws | Net Weight |
XFC500-3P4-1K50G-BEN-20 | 110 | 228 | 177 | 75 | 219 | 200 | 172 | 1.5 | M5 | 2.5kg/5.5lb |
XFC500-3P4-2K20G-BEN-20 | ||||||||||
XFC500-3P4-4K00G-BEN-20 |
Model | W | H | D | w | h | h1 | d | t | Fixing screws | Net Weight |
XFC500-3P4-5K50G-BEN-20 | 140 | 268 | 185 | 100 | 259 | 240 | 180 | 1.5 | M5 | 3.2kg/7.1lb |
XFC500-3P4-7K50G-BEN-20 | ||||||||||
XFC500-3P4-11K0G-BEN-20 | 170 | 318 | 225 | 125 | 309 | 290 | 220 | 5kg/11lb | ||
XFC500-3P4-15K0G-BEN-20 | ||||||||||
XFC500-3P4-18K5G-BEN-20 | 190 | 348 | 245 | 150 | 339 | 320 | 240 | 6kg/13.2lb | ||
XFC500-3P4-22K0G-BEN-20 |
Model | W | H | D | w | h | h1 | d | t | Fixing screws | Net Weight |
XFC500-3P4-30K0G-BEN-20 | 260 | 500 | 260 | 200 | 478 | 450 | 255 | 1.5 | M6 | 17kg/37.5lb |
XFC500-3P4-37K0G-BEN-20 | ||||||||||
XFC500-3P4-45K0G-BEN-20 | 295 | 570 | 307 | 200 | 550 | 520 | 302 | 2 | M8 | 22kg/48.5lb |
XFC500-3P4-55K0G-BEN-20 | ||||||||||
XFC500-3P4-75K0G-BEN-20 | 350 | 661 | 350 | 250 | 634 | 611 | 345 | 2 | M10 | 48kg/105.8lb |
XFC500-3P4-90K0G-BEN-20 | ||||||||||
XFC500-3P4-110KG-BEN-20 | ||||||||||
XFC500-3P4-132KG-BEN-20 | 450 | 850 | 355 | 300 | 824 | 800 | 350 | 2 | M10 | 91kg/200.7lb |
XFC500-3P4-160KG-BEN-20 |
Model | W | H | D | w | h | h1 | h2 | d | W1 | Fixing screws | Net Weight |
XFC500-3P4-185KG-BEN-20 | 340 | 121 | 560 | 200 | 1150 | 1180 | 53 | 545 | 400 | M12 | 210kg/463.1lb |
XFC500-3P4-200KG-BEN-20 | |||||||||||
XFC500-3P4-220KG-BEN-20 | |||||||||||
XFC500-3P4-250KG-BEN-20 | |||||||||||
XFC500-3P4-280KG-BEN-20 | |||||||||||
XFC500-3P4-315KG-BEN-20 | 340 | 1445 | 560 | 200 | 1375 | 1410 | 56 | 545 | 400 | 245kg/540.2lb | |
XFC500-3P4-355KG-BEN-20 | |||||||||||
XFC500-3P4-400KG-BEN-20 | |||||||||||
XFC500-3P4-450KG-BEN-20 |
This frequency converter has been tested in accordance with IEC61800-5-1:2007 and confirmed to comply with the Low Voltage Directive.
This frequency converter complies with the Low Voltage Directive and the EMC Directive, and is CE marked.
This frequency converter has been tested in accordance with European standard EN61800-3:2004 to confirm compliance with the EMC Directive.
XFC500 series frequency converters comply with the European EMC directive and are suitable for the second environment.
Second environment: The second environment includes facilities other than those directly connected to the low-voltage grid supplying residential buildings.
This frequency converter has been tested according to 2011/65/EU Restriction of Hazardous Substance and confirmed to be RoHS compliant.
