SCR trigger closed-loop control algorithm
SCR closed-loop control function, designed for standard and heavy loads. The user can select current-limiting start and voltage ramp start according to the load condition to achieve smooth torque-free oscillating start effect.
Advanced Unique load application parameters
There are ten built-in load types in parameters for users to choose, and a starting control curve is provided for each type of load, so that the soft start can be matched with the load to achieve a good start and stop effect.
Multiple starting and stopping methods
Voltage exponential curve, voltage linear curve, current exponential curve, current linear curve, and programmable kick starting torque and starting current limit can be applied in each mode. According to different loads, the corresponding starting curve can be selected to achieve a good starting effect. A variety of stopping methods, programmable soft stopping, free stopping, braking, pump stop. The basic algorithm makes the motor start and stop more accurate and smooth.
Advanced Communication function
Modbus RTU communication is standard. Optional Ethernet/GPRS communication module is convenient for users to connect and control the network, and improve the automation level and reliability of the system.
Analog signal control
The user can input 4-20mA or 0-20mA standard signal, and can set the upper and lower limit of the analog quantity to realize the start and stop control and alarm of the motor. Data (pressure, temperature, flow, etc.) can also be transmitted via the soft starter. With 4-20mA or 0-20mA standard analog signal output function.
Fireproof material
Below 90KW is a full plastic shell structure, which is made of flame-retardant ABS material. The upper cover of the power section of 90KW and above is a plastic shell structure, and the main frame is made of aluminum-zinc plate material, which has heat resistance and corrosion resistance.
Movable panel
The panel can be moved to equipment operating surface through machine interface for remote control,which is convenient for on-site use.
Powerful anti-interference property
All external control signals are optoelectronic isolated, and different anti-noise levels are set to adapt to use in industrial environments.
Double parameter function
It has two sets of basic parameters, which can control two motors with different powers respectively.
Self-adaption of power frequency
Adaptive power frequency 50/60Hz adaptive function, user-friendly.
Dynamic fault memory
10 faults can be recorded. It is easy to find the cause of the failure.
Perfect protection function
The whole process detects current and load parameters, and has microcomputer protection functions such as overcurrent, overload, underload, overheating, phase failure, short circuit, three-phase current imbalance, phase sequence detection, and frequency error.
Friendly man-machine interface
It adopts LCD display panel, with two display interfaces in Chinese and English, which makes programming and parameter adjustment more convenient.
Control power | AC110V--AC220V±15%, 50/60Hz |
Three-phase power | AC380V±15% Standard wiring AC380V, 660V, 1140V±15% Internal delta connection AC380V±15% |
Nominal current | 18A--1000A, 22 rated values in total |
Applicable motor | Ordinary squirrel cage AC asynchronous motor |
Start mode | Voltage exponential curve, voltage linear curve, current exponential curve, current linear curve |
Stop mode | Free stop, soft stop, brake, and pump stop |
Logical input | Impedance 1.8 KΩ, power supply +24V |
Start frequency | Frequent or infrequent start available, start is advised not to exceed 10 times each other |
Protective function | Overcurrent, overload, underload, overheat, phase failure, three-phase current imbalance, phase sequence detection, overheat of motor and frequency error, etc. |
Protection level | IP00, IP20 |
Cooling type | Natural cooling or forced air cooling |
Installation type | Wall mounted |
Environmental condition | When sea altitude is above 2,000m, soft starter should be derated for use. Ambient temperature: -25-+45°C Relative humidity: less than 95%(20°C±5°C) Free of flammable, explosive and corrosive gas or conductive dust. Good ventilation for indoor installation and vibration is less than 0.5G |
Item | Rated Current (A) | 380V | 690V | 1140V | |||
Adapted Power (kW) | Structure No. (mm) | Adapted Power (kW) | Structure No. (mm) | Adapted Power (kW) | Structure No. (mm) | ||
1 | 18 | 7.5 | F005 | 15 | F005 | 22 | F005 |
2 | 24 | 11 | 22 | 33 | |||
3 | 30 | 15 | 30 | 45 | |||
4 | 39 | 18.5 | 37 | 55 | |||
5 | 45 | 22 | 45 | 65 | |||
6 | 60 | 30 | 55 | 90 | |||
7 | 76 | 37 | 75 | 110 | |||
8 | 90 | 45 | 90 | 135 | |||
9 | 110 | 55 | 110 | 165 | |||
10 | 150 | 75 | 132 | F006 | 225 | ||
11 | 180 | 90 | F006 | 160 | 280 | F006 | |
12 | 218 | 110 | 200 | 344 | |||
13 | 260 | 132 | 250 | 400 | |||
14 | 320 | 160 | 300 | 505 | F007 | ||
15 | 370 | 185 | 350 | 584 | |||
16 | 440 | 220 | F007 | 400 | F007 | 695 | |
17 | 500 | 250 | 456 | 789 | |||
18 | 560 | 280 | 500 | 884 | F008 | ||
19 | 630 | 315 | 560 | F008 | 995 | ||
20 | 780 | 400 | F008 | 700 | |||
21 | 920 | 470 | |||||
22 | 1000 | 530 | |||||
23 | 1200 | 630 |
75kW and below | 90kW - 185kW | 220kW - 315kW | 400kW - 630kW |
Model | Structure number | G | H | I | K | L | M | A | B | C | Gross Weight (kg) |
CMC-008~022/3-HX | F005 | 172 | 320 | 172 | 156 | 240 | 6 | 20 | 10 | 100 | 4.5 |
CMC-030~045/3-HX | 4.7 | ||||||||||
CMC-055~075/3-HX | 5.1 | ||||||||||
CMC-090~185/3-HX | F006 | 285 | 474 | 235 | 230 | 390 | 9 | 20.6 | |||
CMC-220~315/3-HX | F007 | 320 | 512 | 270 | 415 | 25.6 | |||||
CMC-400~630/3-HX | F008 | 400 | 647 | 330 | 495 | 37.6 |
When placing an order, please inform the supplier of the product model, specifications, load conditions and conditions of use in order to select the product correctly.
The standard configuration of the soft starter includes a current transformer, and users do not need to connect an external current transformer.
For users who have special requirements for this product, please explain to the supplier when ordering, and we will provide perfect services
SCR trigger closed-loop control algorithm
SCR closed-loop control function, designed for standard and heavy loads. The user can select current-limiting start and voltage ramp start according to the load condition to achieve smooth torque-free oscillating start effect.
Advanced Unique load application parameters
There are ten built-in load types in parameters for users to choose, and a starting control curve is provided for each type of load, so that the soft start can be matched with the load to achieve a good start and stop effect.
Multiple starting and stopping methods
Voltage exponential curve, voltage linear curve, current exponential curve, current linear curve, and programmable kick starting torque and starting current limit can be applied in each mode. According to different loads, the corresponding starting curve can be selected to achieve a good starting effect. A variety of stopping methods, programmable soft stopping, free stopping, braking, pump stop. The basic algorithm makes the motor start and stop more accurate and smooth.
Advanced Communication function
Modbus RTU communication is standard. Optional Ethernet/GPRS communication module is convenient for users to connect and control the network, and improve the automation level and reliability of the system.
Analog signal control
The user can input 4-20mA or 0-20mA standard signal, and can set the upper and lower limit of the analog quantity to realize the start and stop control and alarm of the motor. Data (pressure, temperature, flow, etc.) can also be transmitted via the soft starter. With 4-20mA or 0-20mA standard analog signal output function.
Fireproof material
Below 90KW is a full plastic shell structure, which is made of flame-retardant ABS material. The upper cover of the power section of 90KW and above is a plastic shell structure, and the main frame is made of aluminum-zinc plate material, which has heat resistance and corrosion resistance.
Movable panel
The panel can be moved to equipment operating surface through machine interface for remote control,which is convenient for on-site use.
Powerful anti-interference property
All external control signals are optoelectronic isolated, and different anti-noise levels are set to adapt to use in industrial environments.
Double parameter function
It has two sets of basic parameters, which can control two motors with different powers respectively.
Self-adaption of power frequency
Adaptive power frequency 50/60Hz adaptive function, user-friendly.
Dynamic fault memory
10 faults can be recorded. It is easy to find the cause of the failure.
Perfect protection function
The whole process detects current and load parameters, and has microcomputer protection functions such as overcurrent, overload, underload, overheating, phase failure, short circuit, three-phase current imbalance, phase sequence detection, and frequency error.
Friendly man-machine interface
It adopts LCD display panel, with two display interfaces in Chinese and English, which makes programming and parameter adjustment more convenient.
Control power | AC110V--AC220V±15%, 50/60Hz |
Three-phase power | AC380V±15% Standard wiring AC380V, 660V, 1140V±15% Internal delta connection AC380V±15% |
Nominal current | 18A--1000A, 22 rated values in total |
Applicable motor | Ordinary squirrel cage AC asynchronous motor |
Start mode | Voltage exponential curve, voltage linear curve, current exponential curve, current linear curve |
Stop mode | Free stop, soft stop, brake, and pump stop |
Logical input | Impedance 1.8 KΩ, power supply +24V |
Start frequency | Frequent or infrequent start available, start is advised not to exceed 10 times each other |
Protective function | Overcurrent, overload, underload, overheat, phase failure, three-phase current imbalance, phase sequence detection, overheat of motor and frequency error, etc. |
Protection level | IP00, IP20 |
Cooling type | Natural cooling or forced air cooling |
Installation type | Wall mounted |
Environmental condition | When sea altitude is above 2,000m, soft starter should be derated for use. Ambient temperature: -25-+45°C Relative humidity: less than 95%(20°C±5°C) Free of flammable, explosive and corrosive gas or conductive dust. Good ventilation for indoor installation and vibration is less than 0.5G |
Item | Rated Current (A) | 380V | 690V | 1140V | |||
Adapted Power (kW) | Structure No. (mm) | Adapted Power (kW) | Structure No. (mm) | Adapted Power (kW) | Structure No. (mm) | ||
1 | 18 | 7.5 | F005 | 15 | F005 | 22 | F005 |
2 | 24 | 11 | 22 | 33 | |||
3 | 30 | 15 | 30 | 45 | |||
4 | 39 | 18.5 | 37 | 55 | |||
5 | 45 | 22 | 45 | 65 | |||
6 | 60 | 30 | 55 | 90 | |||
7 | 76 | 37 | 75 | 110 | |||
8 | 90 | 45 | 90 | 135 | |||
9 | 110 | 55 | 110 | 165 | |||
10 | 150 | 75 | 132 | F006 | 225 | ||
11 | 180 | 90 | F006 | 160 | 280 | F006 | |
12 | 218 | 110 | 200 | 344 | |||
13 | 260 | 132 | 250 | 400 | |||
14 | 320 | 160 | 300 | 505 | F007 | ||
15 | 370 | 185 | 350 | 584 | |||
16 | 440 | 220 | F007 | 400 | F007 | 695 | |
17 | 500 | 250 | 456 | 789 | |||
18 | 560 | 280 | 500 | 884 | F008 | ||
19 | 630 | 315 | 560 | F008 | 995 | ||
20 | 780 | 400 | F008 | 700 | |||
21 | 920 | 470 | |||||
22 | 1000 | 530 | |||||
23 | 1200 | 630 |
75kW and below | 90kW - 185kW | 220kW - 315kW | 400kW - 630kW |
Model | Structure number | G | H | I | K | L | M | A | B | C | Gross Weight (kg) |
CMC-008~022/3-HX | F005 | 172 | 320 | 172 | 156 | 240 | 6 | 20 | 10 | 100 | 4.5 |
CMC-030~045/3-HX | 4.7 | ||||||||||
CMC-055~075/3-HX | 5.1 | ||||||||||
CMC-090~185/3-HX | F006 | 285 | 474 | 235 | 230 | 390 | 9 | 20.6 | |||
CMC-220~315/3-HX | F007 | 320 | 512 | 270 | 415 | 25.6 | |||||
CMC-400~630/3-HX | F008 | 400 | 647 | 330 | 495 | 37.6 |
When placing an order, please inform the supplier of the product model, specifications, load conditions and conditions of use in order to select the product correctly.
The standard configuration of the soft starter includes a current transformer, and users do not need to connect an external current transformer.
For users who have special requirements for this product, please explain to the supplier when ordering, and we will provide perfect services

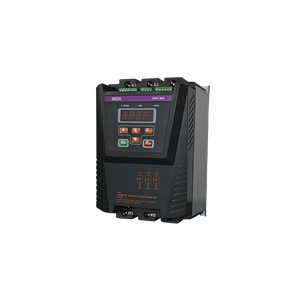

CMC-MX soft starter is suitable for starting and protecting general squirrel-cage AC asynchronous motors. Adapted motor power from 7.5kW to 280kW. It can smoothly start/stop the motor without steps, avoid mechanical and electrical shocks caused by traditional methods such as direct start, star/delta start, auto-coupling step-down start, etc.
