CMC-LX
3phase AC 380V±15% (Standard&Internal delta wiring)
Ordinary squirrel cage AC asynchronous motor
7.5 ~ 630kW
Universal model, widely suitable for various mechanical loads. Typically used for fans, pumps, compressors, etc.
Control power | External | AC110V-10% to AC220V+15%, 50/60Hz |
Built-in | Internal integrated control power supply, no need for external | |
3-phase power supply | Standard wiring AC380V ±15% Internal delta wiring AC380V±15% | |
Nominal current | 18A~1200A, 23 rated values in total | |
Applicable motor | Ordinary squirrel cage AC asynchronous motor | |
Start mode | Voltage ramp start, current ramp start | |
Stop mode | Free stop, Soft stop | |
Protective function | Phase loss, overcurrent, SCR protection, overheating, phase current imbalance | |
Start frequency | Frequent or infrequent startup can be done, it is recommended that the number of startups per hour does not exceed 10 times | |
Logical input | Impedance 1.8 KΩ, power supply +24V | |
Cooling type | Natural cooling or forced air cooling | |
IP | IP00, IP20 | |
Installation type | Wall mounted | |
Communication method | RS485(Optional) | |
Environmental condition | When sea altitude is above 2,000m, soft starter should be derated for use Ambient temperature: -25 ~ +45°C Relative humidity: less than 95% (20°C±5°C) Free of flammable, explosive and corrosive gas or conductive dust. Indoor installation, good ventilation, vibration less than 0.5G. |

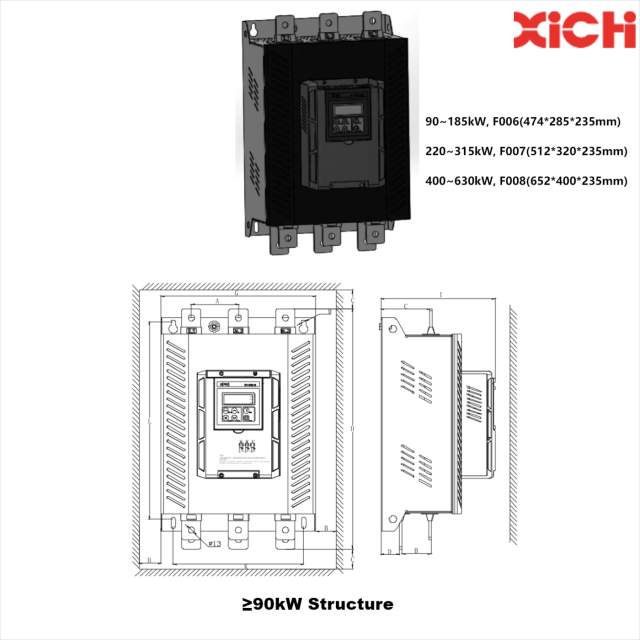

CMC-***/3-LX-■
*** - Adapted Motor Power. For example, 090 means 90kW
■ - Communication method. 0 means none; 1 means RS485
Accessories shown in below table are only for reference.
Adapted motor power (kW) | Model of soft starter | Rated current (A) | Model of bypass contactor | Size of primary line (copper line) |
---|---|---|---|---|
7.5 | CMC-008/3-LX | 18 | CJX4-25 | 4 mm2 |
11 | CMC-011/3-LX | 24 | CJX4-32 | 6 mm2 |
15 | CMC-015/3-LX | 30 | CJX4-32 | 10 mm2 |
18.5 | CMC-018/3-LX | 39 | CJX4-40 | 10 mm2 |
22 | CMC-022/3-LX | 45 | CJX4-50 | 16 mm2 |
30 | CMC-030/3-LX | 60 | CJX4-63 | 25 mm2 |
37 | CMC-037/3-LX | 76 | CJX4-80 | 35 mm2 |
45 | CMC-045/3-LX | 90 | CJX4-95 | 35 mm2 |
55 | CMC-055/3-LX | 110 | CJX4-115F | 35 mm2 |
75 | CMC-075/3-LX | 150 | CJX4-150F | 50 mm2 |
90 | CMC-090/3-LX | 180 | CJX4-185F | 30×4 copper bar |
110 | CMC-110/3-LX | 218 | CJX4-225F | 30×4 copper bar |
132 | CMC-132/3-LX | 260 | CJX4-265F | 30×4 copper bar |
160 | CMC-160/3-LX | 320 | CJX4-330F | 30×4 copper bar |
185 | CMC-185/3-LX | 370 | CJX4-400F | 30×4 copper bar |
220 | CMC-220/3-LX | 440 | CJX4-500F | 40×5 copper bar |
250 | CMC-250/3-LX | 500 | CJX4-500F | 40×5 copper bar |
280 | CMC-280/3-LX | 560 | CJX4-630F | 40×5 copper bar |
315 | CMC-315/3-LX | 630 | CJX4-630F | 40×5 copper bar |
400 | CMC-400/3-LX | 780 | JWCJ20-800 | 50×8 copper bar |
470 | CMC-470/3-LX | 920 | JWCJ20-1000 | 50×8 copper bar |
530 | CMC-530/3-LX | 1000 | CKJ7-1600A/1140V | 50×8 copper bar |
630 | CMC-630/3-LX | 1200 | CJX4-25 | 50×8 copper bar |
To place an order, please provide product model, specification, load and application condition.
Special note:
If client needs keyboard box to be externally placed, it is necessary to order the mounting accessoriess from manufacturer. When keyboard box is externally placed, it needs to lock the mounting fittings of external keyboard box onto door panel with its hole size of 115.5(H) * 104.2(W). For specific installation steps, please refer to CMC-LX Soft Starter Quick Reference Guide V1.1.pdf.
Soft starter is a motor control device that integrates motor soft start, soft stop and various protection functions. It is connected in series between the power supply and the controlled motor.
When the soft starter is used to start the motor, the output voltage of the thyristor gradually increases, and the motor gradually accelerates until the thyristor is fully turned on, and the motor works on the mechanical characteristics of the rated voltage to achieve smooth starting, reduce starting current, and avoid starting overcurrent tripping.
When the motor reaches the rated speed, the start-up process ends. The soft starter automatically replaces the thyristor that has completed the task with a bypass contactor, and provides rated voltage for the normal operation of the motor to reduce the heat loss of the thyristor, prolong the service life of the soft starter, improve its working efficiency, and prevent the power grid from harmonic pollution.
The soft starter also provides a soft stop function. The soft stop is the opposite of the soft start process. The voltage gradually decreases and the speed gradually drops to zero to avoid the torque shock caused by the free stop.
