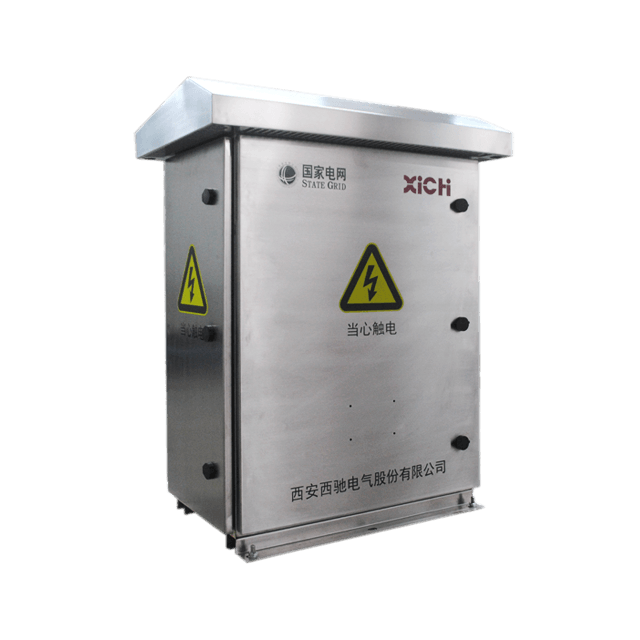

The three-phase unbalanced current in the distribution network is compensated, and the current unbalance is reduced to less than 3%.
Reduce the neutral current in the distribution network.
Compensate the capacitive or inductive reactive power of the system and increase the power factor to 0.99.
Control the harmonic current in the system.
The short-range wireless monitoring handheld terminal using WIFI technology is convenient for ground monitoring settings.
Optional remote GPRS background monitoring system, mobile phone/PC remote monitoring column equipment.
It has the self-adaptive function of the power grid phase sequence, and the phase line connection can be in any order.
The three-phase unbalanced current in the distribution network is compensated, and the current unbalance is reduced to less than 3%.
Reduce the neutral current in the distribution network.
Compensate the capacitive or inductive reactive power of the system and increase the power factor to 0.99.
Control the harmonic current in the system.
The short-range wireless monitoring handheld terminal using WIFI technology is convenient for ground monitoring settings.
Optional remote GPRS background monitoring system, mobile phone/PC remote monitoring column equipment.
It has the self-adaptive function of the power grid phase sequence, and the phase line connection can be in any order.
Item | Compensation capacity / Kvar | 35 | 50 | 75 | 100 |
AC input | Rated voltage | 400V (士20%) | |||
working frequency | (50士2) Hz | ||||
Wiring method | Three-phase four-wire system
| ||||
CT requirements | Require 3 CTs (Class0.5 or above accuracy) 5VA, and the current on both sides of the CT is 5A | ||||
Technical Parameter
| The efficiency of the whole machine | ≥97%, Exceed the capacity, compensate according to the max capacity | |||
Power consumption | ≤3% Rated Capacity | ||||
Operating frequency | 20kHz | ||||
Unbalance compensation | Selective elimination of unbalance and zero-sequence current can be set directly, and the current unbalance after compensation can be reduced to within 3% | ||||
Reactive power compensation | Selective compensation of inductive and capacitive reactive power can be set directly, and the power factor after compensation can reach 0.99 | ||||
Harmonic compensation | compensate 2~13th harmonic | ||||
Circuit topology | Three-level full digital control | ||||
Harmonic level setting | Unbalance, reactive power, neutral current and harmonics can be individually set | ||||
Suppression characteristics | Within the compensation capacity range of the device, the compensation rate is greater than 95%; when it exceeds the compensation capacity range of the device, compensation shall be made according to the max capacity | ||||
Response time | 100μs/10ms | ||||
Cooling method | Forced air cooling -20℃~+60℃ IP44 | ||||
Noise | ≤65dB | ||||
Ambient temperature | -10℃~+45℃ | ||||
Storage temperature | -20℃~+60℃ | ||||
Humidity | Max 95%RH (non-condensation) | ||||
Protection grade | IP44(other protection grades can be customized) | ||||
Mechanical properties | Cabinet size | 978mm(H)*800mm(W)*650mm(D) Other dimensions can be customized | |||
Shell material | Stainless steel, other materials can be customized | ||||
Incoming line | side incoming | ||||
Monitoring method | Handheld Terminal | wireless handheld terminal, full color touch screen, wifi directly connected to the device on the pole | |||
GPRS background | Optional GPRS communication accessories, monitoring equipment anytime, anywhere | ||||
Operating characteristics | It can operate independently and safely and stably around the clock, without affecting the normal operation of other equipment in the system, and without endangering the security of the power grid. The module has protection measures such as over-temperature, over-voltage, under-voltage, overload, over-current, short circuit and system self-diagnosis function. If there is a short circuit and other faults inside the module, it can be automatically protected without affecting the external power system. When the compensation capacity required by the load is greater than the rated compensation capacity, it can continue to compensate according to the output capacity of the body, and stop running without overloading or causing equipment damage. | ||||
